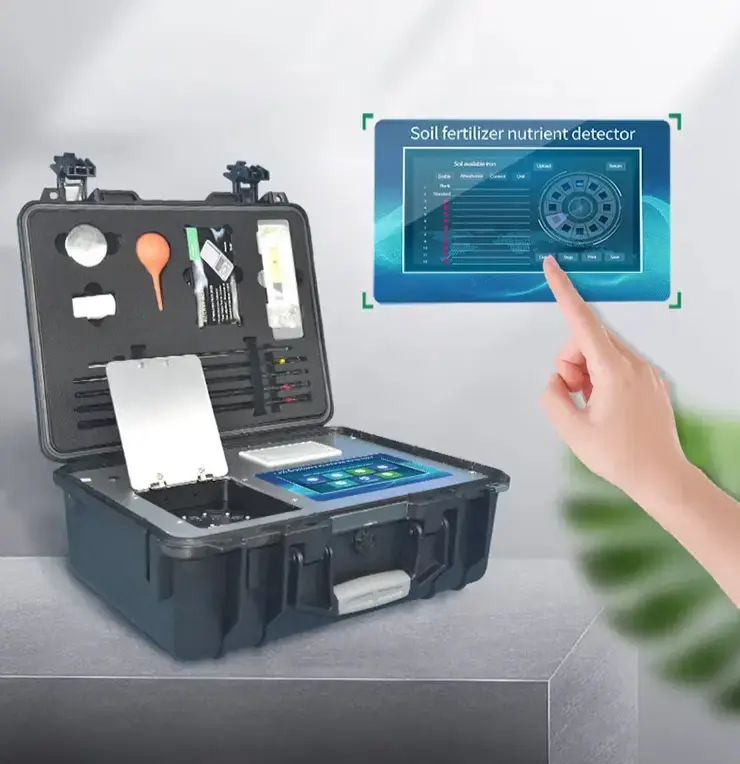

Mini Lab Soil Nutrient Testing Kit
This intelligent Mini Lab Soil Testing kit can detect various nutrients and elements in soil such as available nitrogen, phosphorus and potassium, organic matter and pH.

This mini lab kit features an Android smart operating system and screen to assist with user friendly operation. The built-in crop expert fertilization system can calculate the recommended fertilization amount for the target output of more than one hundred national agricultural, fruit trees, and crops, and scientifically guide agricultural production according to the fertilization formula.

This mini lab features a built-in plant nutrition diagnosis map, according to the pictures of the nutrient deficiency of each crop, it assists to compare the leaves to diagnose the abundance and/or deficiency of the plant.

The instrument has 4G memory, and a 7 inch touch screen, high definition and interactive display screen.

Testing capabilities
  • Ammonium nitrogen
  • nitrate nitrogen
  • available and total nitrogen
  • available and total phosphorus
  • available and total potassium
  • Organic Matter
  • pH
  • Moisture
  • Alkali Hydrolyzed nitrogen

Mini Lab Soil Nutrient Testing Kit

SKU: hm-gt1
$1,599.00Price
GST Included

  • 1. Power supply: AC 220±22V DC 12V+5V (available on-board power supply can also choose instrument built-in lithium battery)
    2. Power: ≤5W
    3. Range and resolution: 0.001-9999
    4. Repeatability error: ≤0.05% (0.0005, potassium dichromate solution)
    5. Instrument stability: drift less than 0.3% within one hour (0.003, transmittance measurement). After the instrument is turned on and warmed up for 5 minutes, the number displayed within 30 minutes has no drift (transmittance measurement); the number drift within one hour does not exceed 0.3% (transmittance measurement), 0.001 (absorbance measurement); the number within two hours The drift does not exceed 0.5% (0.005, transmittance measurement).
    6. Linearity error: ≤0.2% (0.002, copper sulfate detection)
    7. Sensitivity: Red light≥4.5×10-5 Blue light≥3.17×10-3 Green light≥2.35×10-3 Orange light≥2.13×10-3
    8. Wavelength range: red light: 680±2nm; blue light: 420±2nm; green light: 510±2nm; orange light: 590±4nm
    9. PH value (pH): (1) Test range: 1～14 (2) Precision: 0.01 (3) Error: ±0.1
    10. Salt content (conductivity): (1) Test range: 0.01%～1.00% (2) Relative error: ±5%
    11. Technical parameters of soil moisture water unit: ﹪(g/100g); test range of moisture content: 0-100﹪; error less than 0.5%
    12. One-time simultaneous extraction and determination of three available nutrients of N, P, and K in the soil, and scientific recommendation of fertilization (drafter of the rapid test industry standard of the Ministry of Agriculture)
    13. Test speed: test a soil sample (N, P, K) ≤ 30 minutes (including pre-processing time, without the user to provide any accessories)
    14. Simultaneous measurement of 8 soil samples ≤ 1 hour (including pre-processing time)
    15. Instrument size: 43×34.5×19cm, host net weight: 5.1kg



    • Testing Intrument
    • NPK Organic Matter Reagant
    • Qualitive Filter Paper
    • Cuvette x 10
    • Glass Test Tube x 12
    • Plastic test Tube x 20
    • Triangle Flask x 2
    • Reagant Bottle
    • Graduated Cylinder
    • Plastic Dropper x 12
    • Test tube rack
    • Test tube brush
    • Wash Bottle
    • Weighing Spoon
    • Power Adapter
    • TDS Meter
    • pH Test paper
    • pH Meter
    • Glass stirring rod
    • Glass pipette 1 ml
    • Glass pipette 2ml
    • Glass Pipette 5ml
    • Glass Pipette 10ml
    • Print Paper
    • Manual
